FormTrigger Documentation

The FormTrigger component enables the creation of custom web forms that can trigger workflows when submitted. This allows for user-friendly data collection through a dedicated form page that’s automatically generated based on your configuration.

Features

  • Dynamic Form Generation: Automatically creates web forms based on configured fields
  • Custom URL Endpoint: Provides a unique form URL that can be shared with users
  • Form Customization: Configurable title, description, and form fields
  • Field Validation: Enforces required fields and proper validation
  • Multiple Field Types: Supports text, number, date, and boolean field types

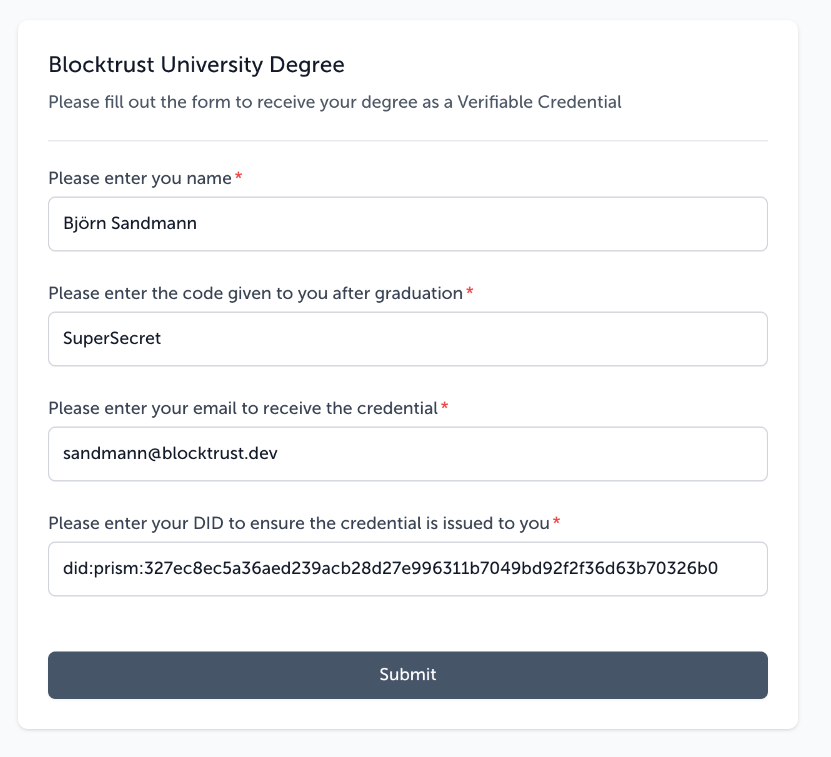

Example of a form page: issuing1.png

Form Configuration

Form Settings

  1. Form URL: Unique URL where the form can be accessed
    • Format: {base-url}/form/{workflow-id}
    • Can be copied to the clipboard using the “Copy URL” button
  2. Form Title: Optional custom title for the form page
    • If not provided, the workflow name will be used as the form title
  3. Form Description: Optional text providing context or instructions
    • Displayed below the title on the form page

Field Configuration

Each form can have multiple fields that collect different types of information:

  1. Field Name: Identifier for the field (required)
    • Used to reference the field value in workflow actions
  2. Field Type: Determines the input validation and UI presentation
    • Text: Standard text input (default)
    • Number: Numeric input only
    • Yes/No: Boolean input
    • Date: Date selection input
  3. Description: Label text shown to the user (required)
    • Should clearly explain what information to enter
  4. Default Value: Optional pre-filled value for the field

Form States

The form page can display several different states:

  1. Active Form: When the workflow is active and properly configured
  2. Inactive Form: When the workflow exists but is set to inactive (displays a message indicating the form is unavailable)
  3. Error State: When configuration issues prevent the form from loading
  4. Success State: After successful submission, with option to submit another response

When a form is submitted:

  1. The FormService validates all required fields are present
  2. An execution context containing the form data is created
  3. A workflow outcome is generated and enqueued for processing
  4. The workflow actions can access form field values through parameter resolution
